주용도는 냉기순환용(Evaporator)으로 사용되며 내식성,장수명(연속 20,000hr이상), 저소음, 저입력 ;

▣ Characteristics

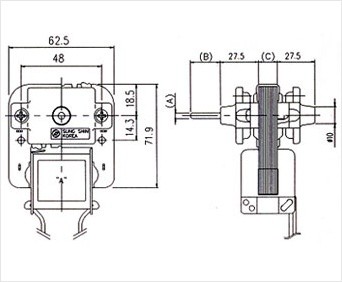

TYPE	NO LOAD						DIMENSION			INS. CLASS	WATER PROOF
	V	Hz	Pi(W)	RPM	TORQUE(kg.cm)		(A) (φ)	(B) (mm)	(C) (mm)
					MAXIMUM TORQUE	STARTING TORQUE
23210	110~240	50	6.5~15.5	2750~2900	0.042~0.200	0.055~0.100	φ2.5 φ3.0 φ3.17 φ4.0	10		A,E,B	X
23210		60	5.5~14.0	3450~3500	0.033~0.150	0.032~0.090		10		A,E,B	X
23211		50	6.5~15.5	2700~2900	0.050~0.230	0.042~0.105		11		A,E,B	X
23211		60	5.5~14.5	3200~3400	0.033~0.173	0.032~0.094		11		A,E,B	X
23213		50	6.0~16.0	2700~2800	0.055~0.260	0.050~0.115		13		A,E,B	X
23213		60	6.1~15.5	3300~3400	0.043~0.210	0.045~0.097		13		A,E,B	X
23215		50	9.5~17.0	2800~2950	0.130~0.280	0.105~0.120		15		A,E,B	X
23215		60	9.0~16.0	3300~3500	0.105~0.230	0.065~0.110		15		A,E,B	X
